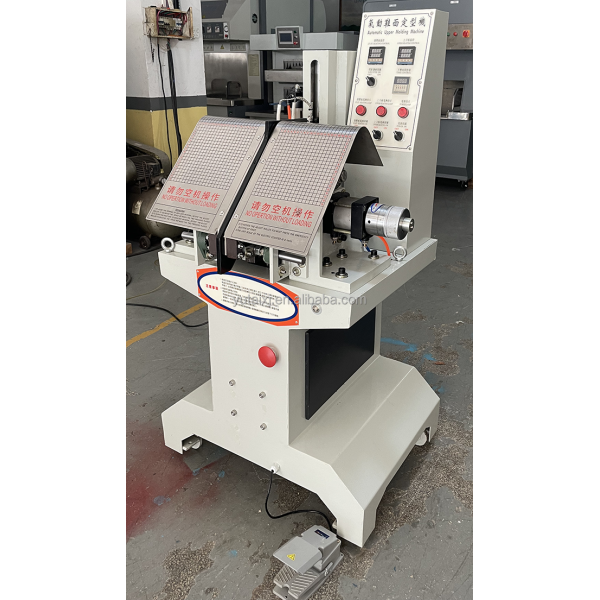

Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm

Condition : New

Applicable Industries : Manufacturing Plant

Weight (KG) : 340

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : other

Place of Origin : Guangdong, China

Brand Name : Yutai

Warranty : 1 Year

Product name : Vamp Upper Pneumatic Crimping Molding Shaping Machine

Voltage : 220v/50hz

N.W : 300kg

Pneumatic Pressure : 0.6Mpa

Machine Dimensions : 850*700*1400mm

Packing Dimensions : 910*760*1530mm

Power : 2kw

Price : CN¥15,184.47/sets 1-4 sets

Contact Now

Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Features:
1.The machine is suitable for auto curve setting of various boots, vamps and leathers.
2.Adopt column runner, stable movement.
3.Simple operation and convenient adjustment.
4.Size of vamp is visible, depth of cutting and pressing downward is adjustable.
5.One-step forming saves material cost.
6.The machine has two functions, which can be double bending and single bending when replacing the blade board.
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Technical Parameter
Model
YT-238
Name
Vamp Crimping Molding Machine
Voltage
220V/60HZ
Power
2KW
Air Pressure
0.6Mpa
Machine Dimension
850*700*1400mm
Packing Dimension
910*760*1530mm
N.W
300kg
G.W
340KG
Products Description
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm

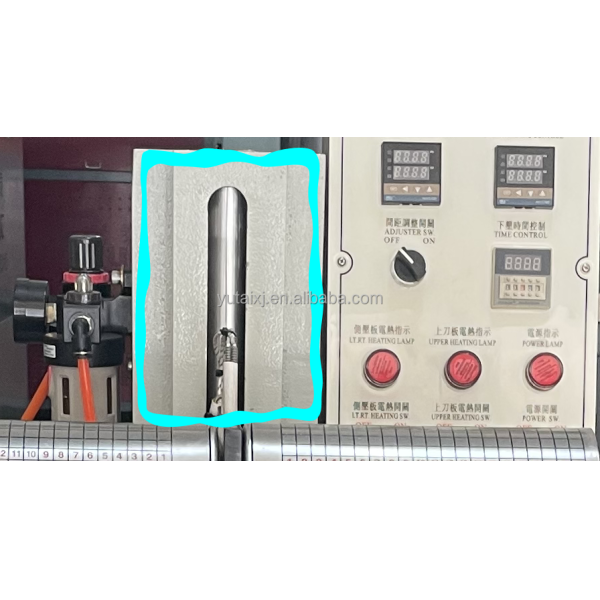

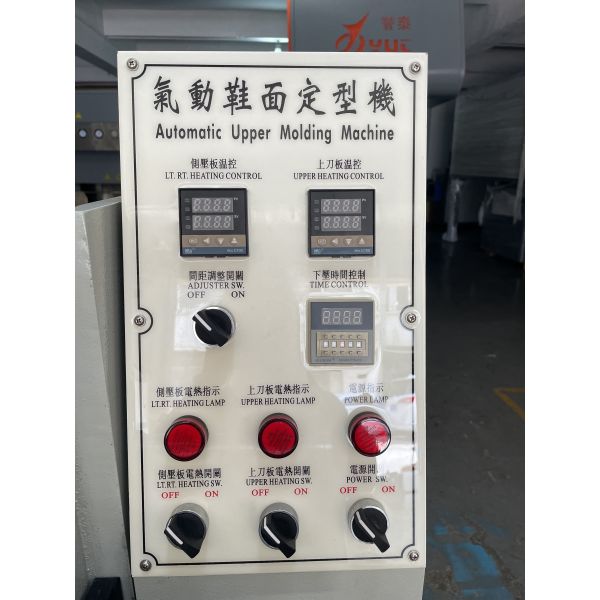

All adjustments are clear and easy to learn and understand.
The temperature and setting time can be adjusted according to the leather material.


The depth of the setting can also be controlled here, using the foot pedal.
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm

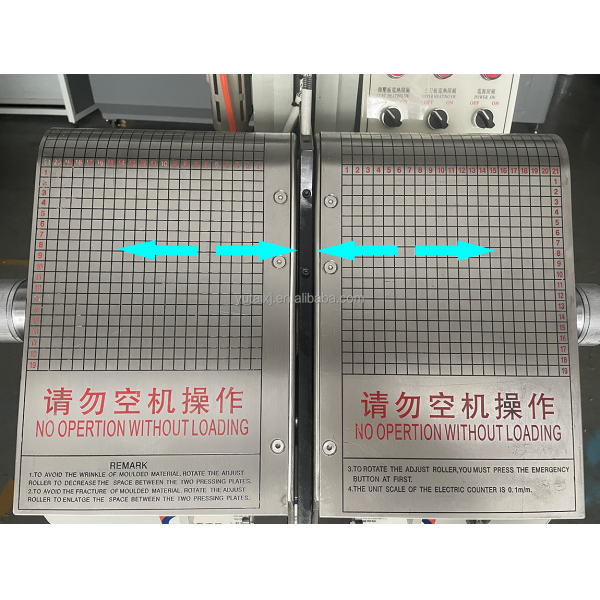

The shaping gap can be adjusted according to the thickness of the material.
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm

You can adjust the size of the gap by turning this wheel, it is very easy.
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Recommend Products
Hot Products
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Company Introduction
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Precision Pneumatic Single/Double Bending Forming Machine for Boots Machine Dimensions 850*700*1400mm
Our Service
· Your reply will be replied within 8 hours.
· Fast delivery time and good after service.
· Keep the mass production as the sample in high quality
· Freight forwarder: faster, safer, and convenient.
· Good factory price.
FAQ
Q1: Are you the factory or trading company?
A1: We are the direct factory with 18 years experience in producing shoe machines.

Q2: What is your MOQ of your Product?
A2: Normally our MOQ is 1 set.

Q3: What's your payment term?
A3: Normally we do 50% T/T in advance 100% balance before shipment. Other payment terms
can be discussed case by case.

Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by mail, WeChat, whatsapp or call, we will reply
you in 8 hours.

Q5: How long does your product warranty?
A5: Our product is guaranteed for one year.

Q6: What is the product package?
A6: Our products package are wooden case, carton and so on, we also accept customer's
requirements about the package.

Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
