Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine

Condition : New

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Construction works , making shoe factory

Weight (KG) : 210

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Place of Origin : Guangdong, China

Brand Name : YUTAI

Warranty : 2 years

N.W : 140KG

Machine Dimensions : 1850*1040*1000mm

Package Dimensions : 1950*1140*1300mm

Max. Temperature : 200 degree

working speed : 0-7m/min

Working Width : 300/500/600/900mm

After Warranty Service : Video technical support/Online support

Voltage : 220V/380V/50HZ

Power : 6.2kw

Bonded presure : 1.5kg/cm2

Price : CN¥8,770.84/sets 1-9 sets

Contact Now

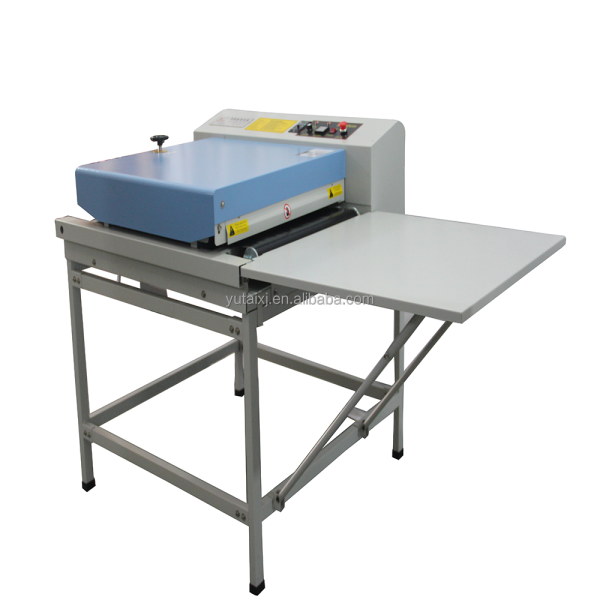

YT-500 Shoe upper/vamp ironing fusing machine
Product Description
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
▶This machine is suitable for back lining and leather pressing interlining, and especially suitable for the bonding of hot melt adhesive and leather back.

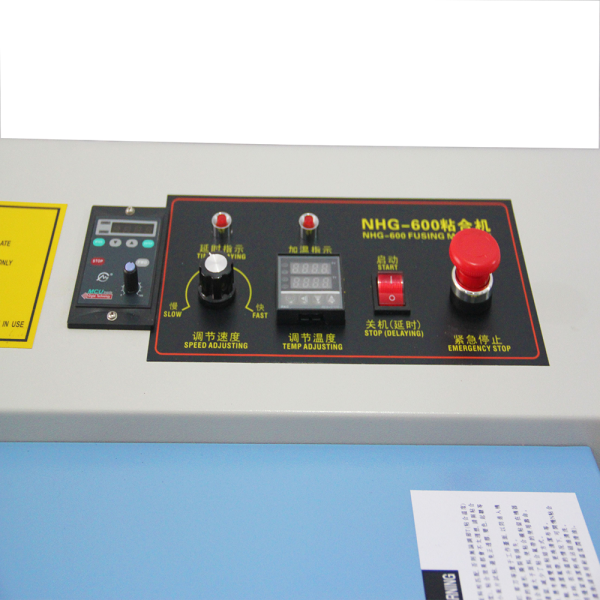

▶The temperature, pressure and working speed can be adjusted.
▶ Working size has 300mm,500mm,600mm, 900mm or customized according to customer's needs.
▶The belt adopts a seamless link for easy and quick installation.
▶Uniform temperature, and the extruded upper and the lining are bonded smoothly, no bubbles and and come unglued.
▶Simple operation and maintenance.
▶Comparing with traditional manual ironing and pressing, it has such advantages as high efficiency and good bonding effect.
Technical Parameter
Model
YT-500
Name
Upper/ vamp ironing machine
Power
6.2kw
Voltage
220V/380V/50HZ
Machine weight
140kg
Package weight
210kg
Machine dimension
1850*1040*1000mm
Package dimension
1950*1140*1300mm
Bonded pressure
1.5kg/cm2
Working speed
0-7m/miu
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Contact US
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Hot Products
Company Introduction
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Max. Temperature 200 degree Highly Productive Shoes Machine for Making Upper/Vamp Hot Press Machine
Our Service
▶Small machines is installed in our factory, and after one week of repeated testing, then arrange the warehouse for packaging and shipment.
▶For large machinery, our factory will install and debug it well.With-7~10 days of testing, if there is no failure rateat all, we
will arrange sales to take video and send it to the customer to confirm.After the customer confirms, we can follow the customer's request., disassemble part of the machine according to customer's requirements to reduce the shipping cost or shipping with full set after installation.If the machinery cannot be directly loaded into the container and must be disassembled, we will also take a video and send it to the customer, instructing our customer how to install and debug the machinery correctly after receiving it.
▶Our engineers are available for on-site service.
▶We reply within 1 hour during working time, if meet work off or day off you can send us by E-mail, phone call or whatsApp directly, and we will reply within 8 hours.
FAQ
Q1: Are you the factory or trading company?
A1: We are the direct factory with 18 years experience in producing shoe machines.

Q2: What is your MOQ of your Product?
A2: Normally our MOQ is 1 set.

Q3: What's your payment term?
A3: Normally we do 50% T/T in advance 100% balance before shipment. Other payment terms
can be discussed case by case.

Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by mail, WeChat, whatsapp or call, we will reply
you in 8 hours.

Q5: How long does your product warranty?
A5: Our product is guaranteed for one year.

Q6: What is the product package?
A6: Our products package are wooden case, carton and so on, we also accept customer's
requirements about the package.

Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
