Single/Double-layer Sole Assembling Production Line Shoes Conveyor With Infrared Oven

Name: SingleDoublelayer Sole Assembling Production Line Shoes Conveyor With Infrared Oven
Brand: YUTAI
Price: 66 USD

Quality Single/Double-layer Sole Assembling Production Line Shoes Conveyor With Infrared Oven for sale

Condition : New

Applicable Industries : Manufacturing Plant

Weight (KG) : 300

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Place of Origin : Guangdong, China

Brand Name : YUTAI

Warranty : 1 Year

Product name : YT130 Single/Double-layer Shoe Sole Infrared Conveyor For Sales

Color : Red/Blue

Application : Shoe Making Industry

Name : Shoe Sole Infrared Conveyor For Sales

Type : Semi-automatic

Voltage : 380V/220V

Function : transport shoes

Power : 6-15kw(according to the oven length)

After Warranty Service : Video technical support/Spare parts/online

MOQ : 15 meters

Price : CN¥66,746.60/meters >=15 meters

Contact Now

About Our Services

▶Small machines is installed in our factory, and after one week of repeated testing, then arrange the warehouse for packaging and shipment.

▶For large machinery, our factory will install and debug it well.With-7~10 days of testing, if there is no failure rate
at all, we will arrange sales to take video and send it to the customer to confirm.After the customer confirms, we can follow the customer's request., disassemble part of the machine according to customer's requirements to reduce the shipping cost or shipping with full set after installation.If the machinery cannot be directly loaded into the container and must be disassembled, we will also take a video and send it to the customer, instructing our customer how to install and debug the machinery correctly after receiving it.
▶Our engineers are available for on-site service.
▶We reply within 1 hour during working time, if meet work off or day off you can send us by E-mail, phone call or whatsApp directly, and we will reply within 8 hours.

Single/Double-layer Sole Assembling Production Line Shoes Conveyor With Infrared Oven

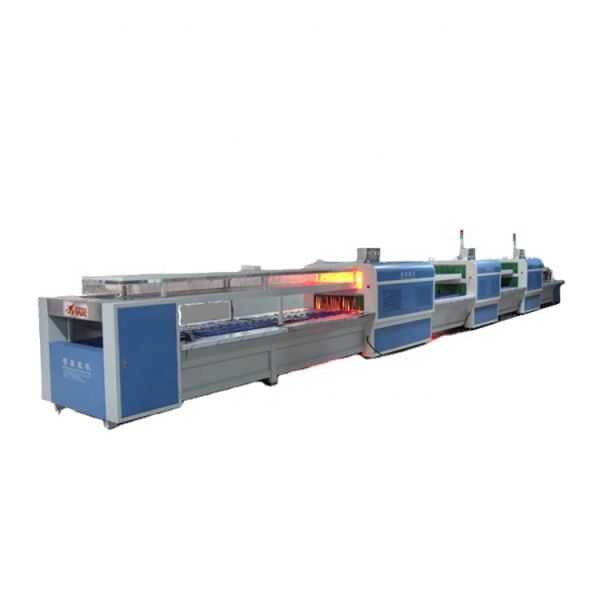

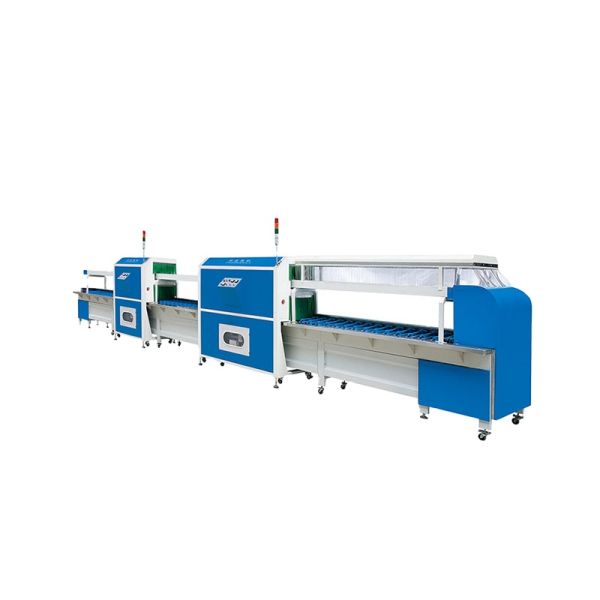

YT-130 Single/double layer infrared sole attaching automatic production line with oven

Product Description

▶The production line is a sole attaching assembly line for shoes making, the near-infrared light pipe is adopted, which can evenly heat the inside and outside of glue layer, it is matched with a heated air circulation system, so it can dry and activate the glue steadily at a high speed.

▶ It adopts the low-dazzling filtering infrared light pipe, which temperature rises quickly and stably and save electric power.

▶Precise constant temperature system, It adopts SCR temperature control system with precise constant temperature and thus the effect of sole attaching is extremely good. Temperature can reach the set level within 40 to 60 seconds after the machine starts up, which can reduce power consumption.

▶ Dryer temperature can be set according to different materials, thus make production more convenient and reach the requirements of shoe making design and technique easily.

▶Conveyor system: conveyor speed is adjustable, sole and vamp can be transferred simultaneously, it adopts adjustable support to fit different shoes. the length of production line can be customized according to the plant planning, sole attaching section is provided with quick conveyor, so make stickup flow.

▶The flow-line dryer can move adjustment position at random coordinating with work flow.

▶Bilayer design adopts separation type to fit with procedure designs including sole laying processing and gluing in order to increase production efficiency.

▶Sole and vamp are exposed in direct near-infrared permeating light so that dryer length can be shortened greatly.

▶The design is simple, artistic, novel, and the machine easy to install and operate.

Technical Parameter

Machine name	Single/double layer infrared sole attaching automatic production line
Model	YT-130
Voltage	380V
Power	6-15kw(according to the oven length)
Working speed	0-3000mm/munute
Output	250 Pairs/hrs
Inner width	1200mm
Total width	1430mm
height	1550mm

Hot Products

Company Introduction

FAQ

Q1: Are you the factory or trading company?
A1: We are the direct factory with 18 years experience in producing shoe machines.

Q2: What is your MOQ of your Product?
A2: Normally our MOQ is 1 set.

Q3: What's your payment term?
A3: Normally we do 50% T/T in advance 100% balance before shipment. Other payment terms
can be discussed case by case.

Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by mail, WeChat, whatsapp or call, we will reply
you in 8 hours.

Q5: How long does your product warranty?
A5: Our product is guaranteed for one year.

Q6: What is the product package?
A6: Our products package are wooden case, carton and so on, we also accept customer's
requirements about the package.

Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
